1-In 8-Out Selector Audio Switch Distributor - Snap type wiring Interface

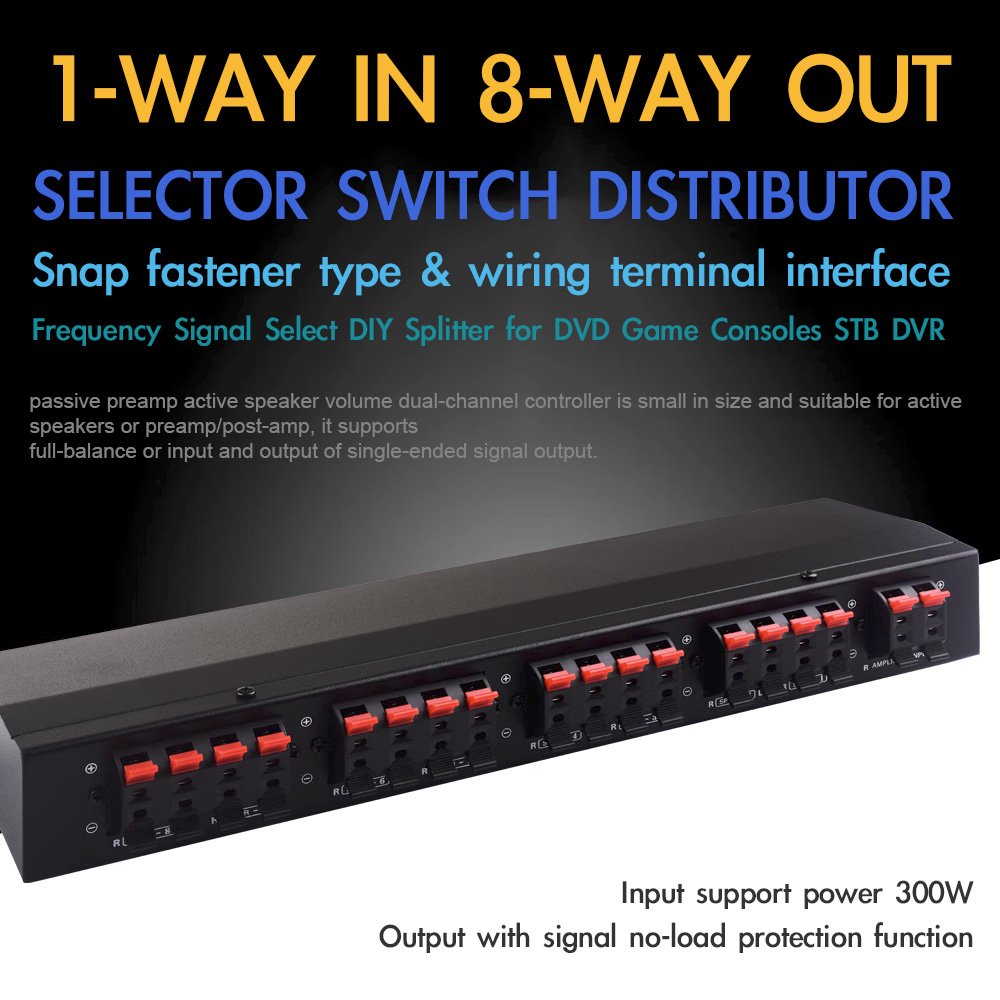

1-WAY INPUT 8-WAY OUTPUT SELECTOR SWITCH DISTRIBUTOR - Snap fastener type & wiring terminal interface
Frequency Signal Select DIY Splitter for DVDs, game consoles, set-top boxes, DVRs, TV stereos, CD players, video games, cell phones, amplifiers, active speakers

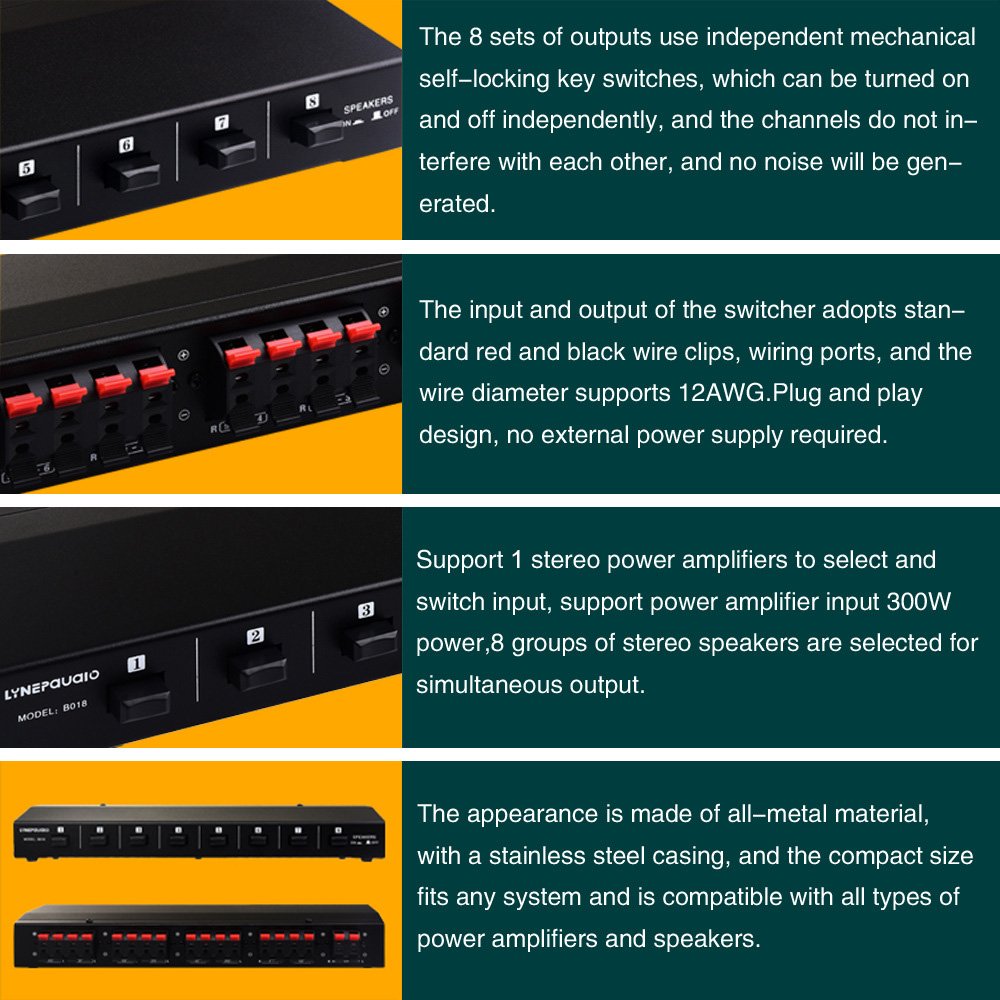

8 Output: 8 groups of stereo outputs with respectively switches, which can be turned on at the same time or turned off individually, and the sound quality and volume of the signal source will not be lost when turned on at the same time.
1 Input: 1 groups of inputs can be turned on at the same time, or one of them can be turned off individually. After input, 8 groups of stereo outputs can be assigned to output, and the outputs are independently controlled by switches.
The 8-channel audio signal selection switcher solves complicated line plug in and plug out, which uniformly connects device input signal sources to the switcher for easily selection. Use standard Snap type wiring port.
Simple Installation: plug and play, easy to install with direct insertion.
Application: There is no loss of input and output signals, and you can enjoy a different listening experience. Mainly used to select and switch on TV audio, CD player, video game, mobile phone, amplifier, active speakers, and etc.
Interface: Snap fastener type & wiring Terminal Interface
Power: USB 5V
Output Impedance: 4 - 16Ohm
Frequency Response: 10Hz-50kHz
Output loss: <0.01dB
Signal gain: 15dB
Signal-to-noise ratio S/N: >98dB
Connect the loudspeaker to 1-2-3-4-5-6-7-8 position respectively.
Open your power amplifier stereophonic equipment, the product needn’t additionally connect power supply.
Number of input channels: 1 sets of stereo switching input
Number of output channels: 8 sets of stereo output

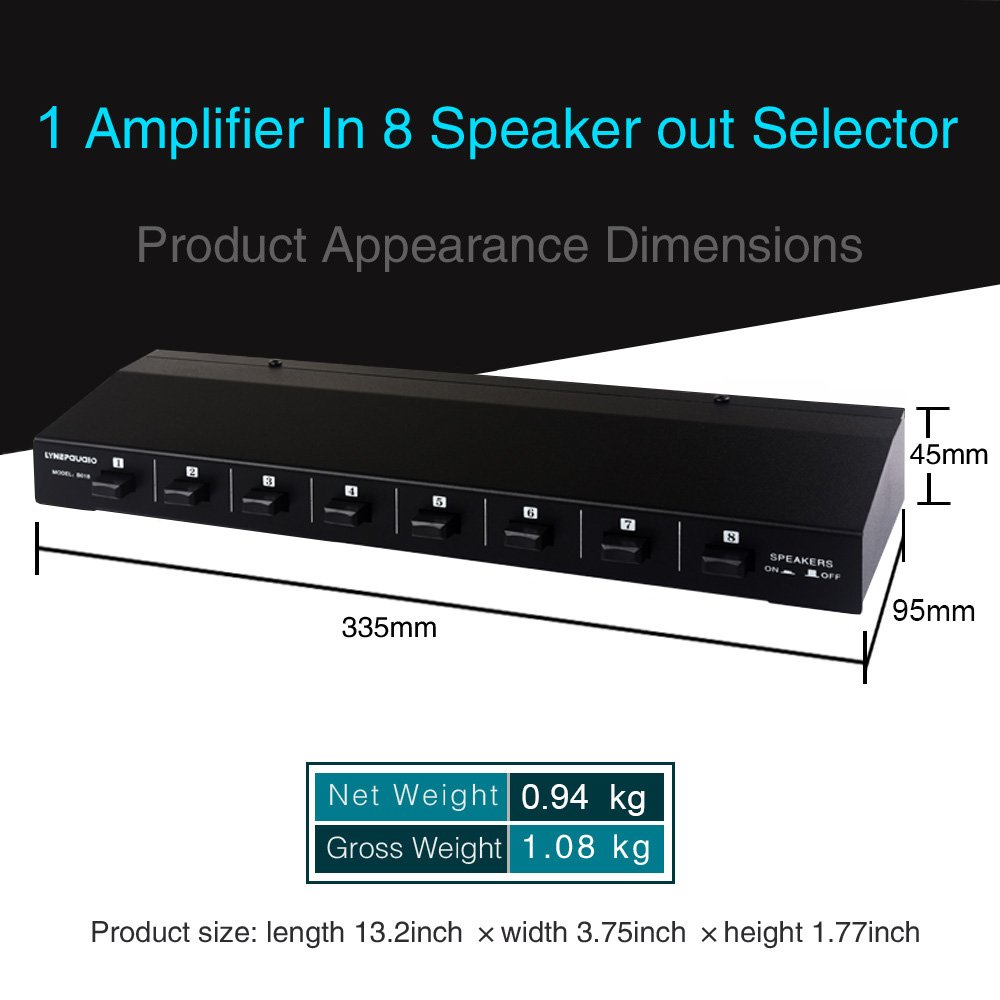

Size Chart: 335x95x45mm / 13.2x3.75x1.77inch
1 Piece B018 1 in 8 out audio frequency signal select device
1 Piece USB power supply wire
